Карта DWDM Line EDFA усилитель 20dBm c VOA

Sintai
Артикул: L2025NV
204 332 руб.
Нашли цену дешевле?
- + шт Купить Добавлено Быстрый заказ
Зарегистрируйтесь, чтобы получить скидку!

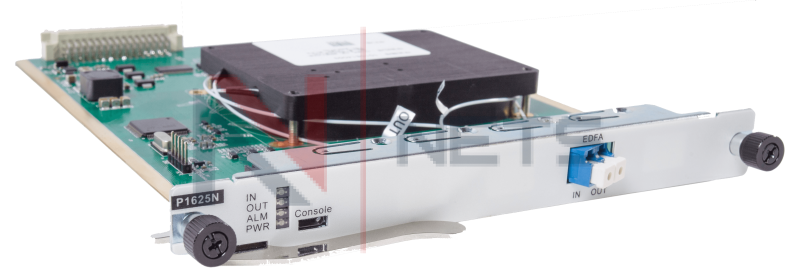

EDFA: erbium-doped fiber amplifier card

EDFA is the erbium-doped fiber amplification card launched by Sintai Communication Co., Ltd. Its main function is to compensate the power of the signal optical in the transmission line, and it can amplify the optical signals of up to 48 channels with 100 GHZ’s interval) or 96 channels with 50 GHZ’s interval) at C band at the same time. It has characters of flat gain, locked gain, low noise index, etc. It’s an indispensable and important component for DWDM system, future high speed system and all-optical network long-distance transmission.

Work wavelength range

Standard type:1528nm~1561nm, suitable for 40wavelength (100 GHZ) or 80 wavelength (50 GHZ) DWDM systems

Extension type:1528nm~1568nm, suitable for 48 (100 GHZ) or 96 wavelength (50 GHZ) DWDM systems

EDFA type

BA (boost amplifier)

LA (line-amplifier)

PA (pre-amplifier)

Minimum input optical power

-32 dBm

-32 dBm

-32 dBm

Maximum output optical power

+20dBm

+20dBm

+17dBm

Maximum gain

20dB

33dB

30dB

Noise factor

<5dB

<5 dB

<5 dB

Gain flatness

<1.5dB

<1.5dB

<1.5dB

Occupied slot number

Occupy 1 slot, suitable for the platform of the whole OTNS8600 series

Network management function

Support real time monitoring for EDFA’s work state, including: optical power, optical pumping, temperature, etc.

Unique technology

Support gain locking technology, transient control technology automatic shut-off technology of output optical power

EVOA

Built-in (optional); network management can adjust attenuation’s dynamic range of 1.5 dB~21.5 dB

Optical interface

All interfaces are LC type

Typical power consumption

15 w

MTBF

> 100000 hours


Производитель
Sintai
Задать вопрос
Подробно расскажем о наших товарах, видах и стоимости доставки, подготовим индивидуальное предложение для оптовых клиентов!

Карта DWDM Line EDFA усилитель 20dBm c VOA

EDFA усилитель C-band with VOA (staturated input optical power -5dBm, maximum output optical power +20dBm, gain 25dB,LC)
