Карта компенсатор дисперсии DCM 20km

Sintai
Артикул: DCF20A
63 187 руб.
Нашли цену дешевле?
- + шт Купить Добавлено Быстрый заказ
Зарегистрируйтесь, чтобы получить скидку!

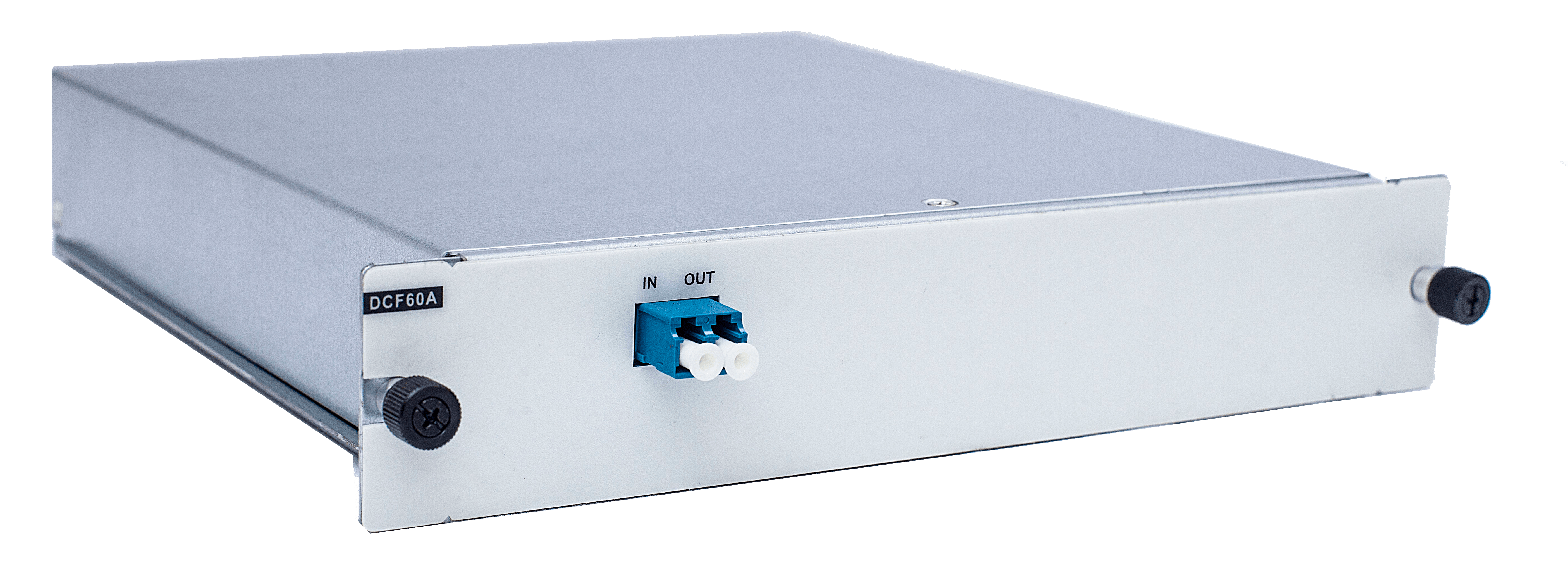

DCF: dispersion compensation board

DCF is the negative dispersion optical fiber launched by Sintai Communication Co., Ltd, which is a new kind of single mode optical fiber designed for current G.652& G.655standard single-mode optical fiber; the dispersion of G.652 optical fiber in the vicinity of 1550nm wavelength is positive (17-20) ps/nm (km), and the dispersion of G.655 standard optical fiber in the vicinity of 1550nm wavelength is positive (4-6) ps/nm (km), with a positive dispersion slope. So we need to add dispersion compensation fiber with negative dispersion into the optical fiber to carry out the dispersion compensation and make sure that the total dispersion of the whole optical fiber line is near zero. Thus high speed, large capacity and long distance communication can be realized.

Dispersion Compensation Principle

Dispersion is one of the transmission properties of optical fiber, and the optical pulse signal will be broadened in time after transmission in the fiber for a distance, which produces inter-symbol interference, thus increasing the error rate and affecting the quality of communication.

  •  The higher the data rate is, more easily the inter-symbol interference will occur

  •  The longer the transmission distance is, more easily the inter-symbol interference will occur

Product Model

DCF20A

DCF40A

DCF60A

DCF80A

DCF100A

Equivalent G.652 compensation distance

20km

40km

60km

80km

100km

1545nm wavelength dispersion(ps/nm)

-340±20

-670±30

-1000±40

-1340±50

-1670±60

1545nm wavelength relative dispersion slope

0.004±20%(nm-1)

Insertion loss

≤3.6 dB

≤4.8 dB

≤6.8 dB

≤8.7 dB

≤9.7 dB

Polarization mode dispersion

≤0.6 ps

≤0.9 ps

≤1 ps

≤1 ps

≤1 ps

Nominal single-wave input optical power

≤0 dBm

Optical interface

All interfaces are LC type

Typical power consumption

0W (passive components)

MTBF

> 200000 hours

Occupied slot number

2 slots (dispersion compensation board used for over 40km needs to be configured individually with DCF passive frame)
