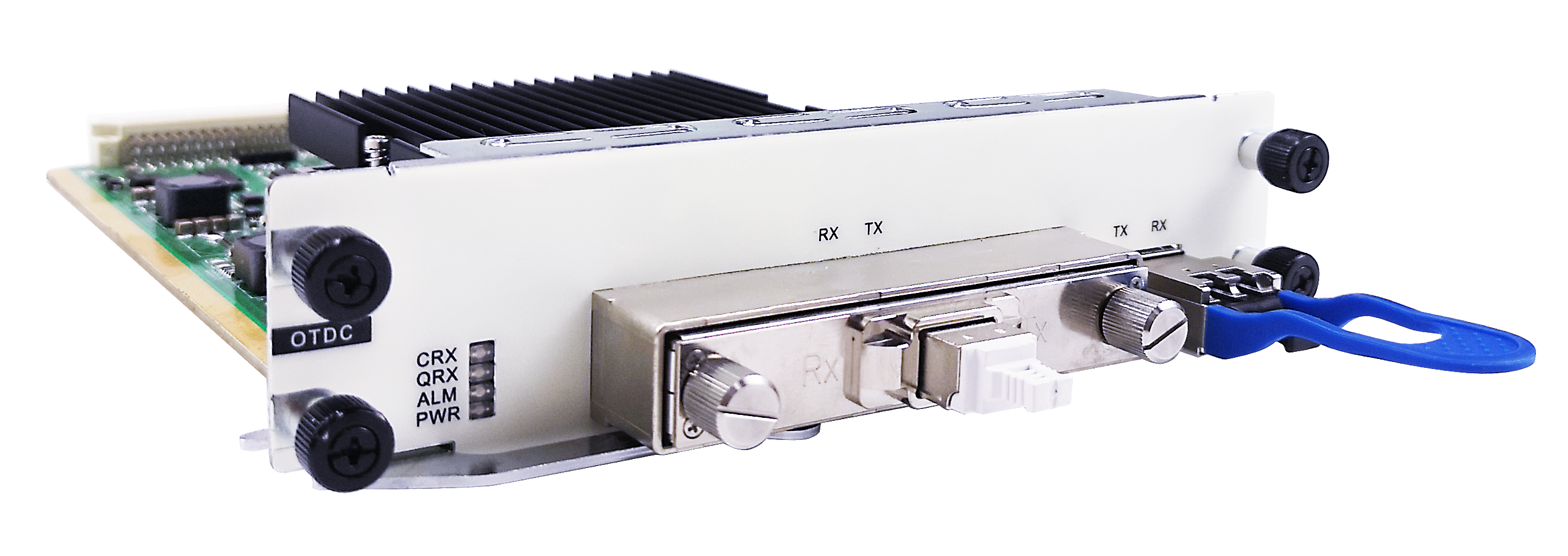

Карта OTDC 1xQSFP28 и 1xCFP 100Gbit/s OEO с поддержкой 3R регенерации

Sintai
Артикул: OTDC
341 643 руб.
Нашли цену дешевле?
- + шт Купить Добавлено Быстрый заказ
Зарегистрируйтесь, чтобы получить скидку!

OTDC: 100G service card

OTDC is a single access board for 1-channel 100Gbit/s rate service launched by Sintai Communication Co., Ltd. Its main function is to complete the operations of OTN framing and SDFEC coding inside the board for the optical signal of 1-channel 100Gbit/s rate services, and then output 1-channel OTU4 optical signal. A 100G coherent transmission CFP optical transceiver or a 4x25G incoherent transmission CFP optical transceiver can be chosen at the WDM side to realize the common application of service board for the 100G coherent or incoherent transmission systems.

Product Model

OTDC

Basic function

Support 1-channel 100G transparent transmission and can convert 1-channel 100G service signal into the OTU4 optical signal of a standard DWDM wavelength or 4 25G-optical-signals at the standard DWDM wavelengths

Access service type

100G Ethernet or 100G OTN

Occupied slot number

Occupy 2 slots, applicable to OTNS8600 II or OTNS8600 Ⅴ

WDM technology

Support DWDM: C Band, 100GHz or 50GHz

3R technology

Support 3R function: Re-amplifying, Retiming, Re-shaping

Network management function

  •  Support real time monitoring of the port work state, including: transmitting and receiving optical power, temperature, etc

  • Support port loopback and port shutdown function

Client-side interface

Support one pluggable optical port of QSFP28, with LC or MPO interface

WDM-side interface

Support a 100G port based on CFP (support coherent IPL CFP or 4x25G DWDM CFP), with LC interface

Typical power consumption

20W

MTBF

> 100000 hours

Производитель
Sintai
