Карта OTDE 8*25G SFP28 OEO с поддержкой 3R регенерации

Sintai
Артикул: OTDE
100 275 руб.
Нашли цену дешевле?
- + шт Купить Добавлено Быстрый заказ
Зарегистрируйтесь, чтобы получить скидку!

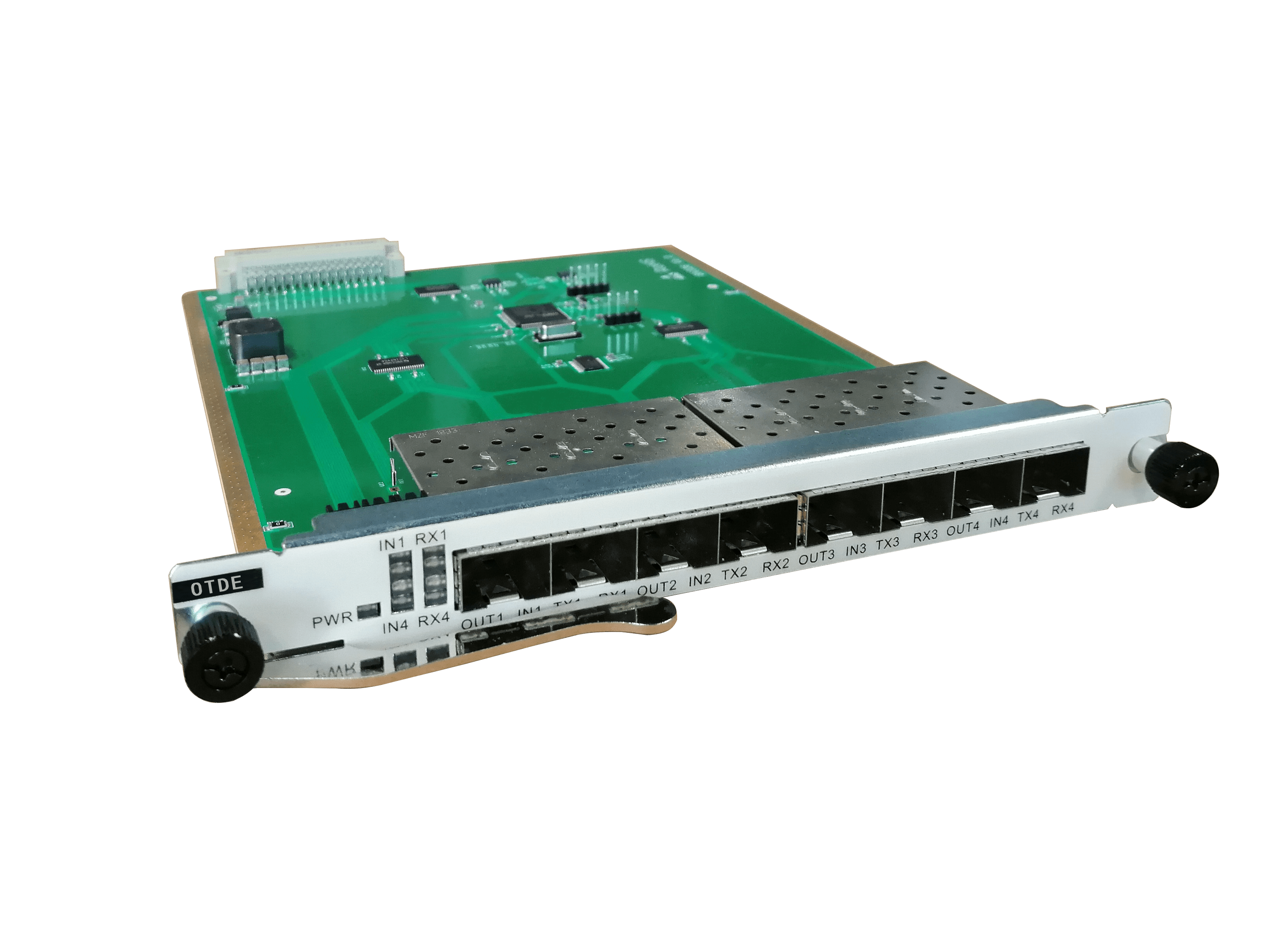

OTDE: 4x25G service access board

OTDX is a 4-channel 25G service access card. Its main function is to finish the 3R regeneration of any 4-channel signals under any protocol within the access rate of 1.25Gbit/s~11.3Gbit/s, and then convert them into optical signals of the standard DWDM or CWDM wavelength, so that the MUX unit can multiplex the optical signals with different wavelengths and also achieve the reverse process. It’s applicable to the wavelength division transmission solution for any access of services with the rate of 25G, compatible with 16G or 32G FC.

Product Model

OTDE

Basic function

  •  It supports bidirectional transmission of 4-channel services with any rate in 25Gbit/s
  • It supports unidirectional transmission of 8-channel services with any rate in 25Gbit/s

Access service type

  •  25GE

  •  FC 16G/32G

  •  eCPRI: 24.33 Gbit/s

Occupied slot number

Occupy 1 slot, applicable to the whole OTNS 8600 series platform

WDM technology

Support DWDM: C Band, 100GHz or 50GHz

Support CWDM:1271nm~1611nm

3R technology

Support 3R function: Re-amplifying, Retiming, Re-shaping

Network management function

  •  Support real time monitoring for port work state, including: transmitting optical power, receiving optical power, temperature, etc
  • Support set for the work rate of ports
  • Support port loopback and port shutdown

Interface

Support 8 pluggable optical port of SFP28

Typical power consumption

20W

MTBF

>100000 hours

Производитель
Sintai
Задать вопрос
Подробно расскажем о наших товарах, видах и стоимости доставки, подготовим индивидуальное предложение для оптовых клиентов!

Карта OTDE 8*25G SFP28 OEO с поддержкой 3R регенерации

Карта OEO, 8 слотов SFP28, 4*25Gbit/s (совместимость со всеми сервисами скорость передачи 16G..32G)

100275
