Профиль ACS для настройки NTU-RG1402G-W РРР и VoIP

Пример профиля для ACS сервера для конфигурации терминала NTP-RG1402G-W или NTU-RG1402G-W. РРР-роутер для услуги интернет, с включенными портами 0-3 и DHCP клиент для телефонии.

Нужно скопировать данные параметры в профиль ACS сервера, встроенного в LTP-4X или LTP-8X.

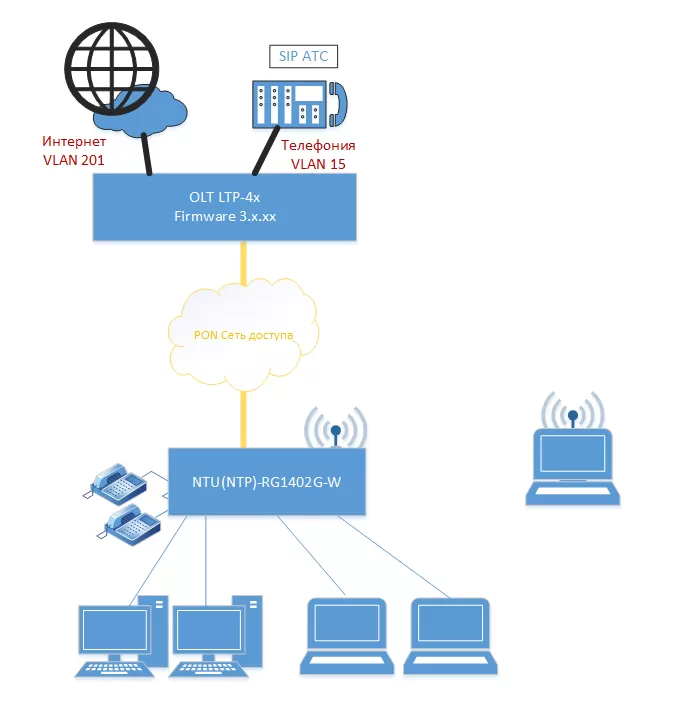

Не забыть в PON конфигурации создать профили cross-connect с VLAN 201 для интернета и 15 для телефонии и назначить их на ONT

set property InternetGatewayDevice.Layer2Bridging.Marking.1.MarkingEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.1.MarkingBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.1.MarkingInterface 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.1.EthernetPriorityMark 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.1.VLANIDUntag TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.1.VLANIDMark -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.1.VLANIDMarkOverride FALSE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.1.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.1.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.1.FilterInterface 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.1.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.1.AdmitOnlyVLANTagged FALSE nocheck

set property InternetGatewayDevice.Layer2Bridging.Marking.2.MarkingEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.2.MarkingBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.2.MarkingInterface 2 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.2.EthernetPriorityMark 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.2.VLANIDUntag TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.2.VLANIDMark -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.2.VLANIDMarkOverride FALSE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.2.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.2.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.2.FilterInterface 2 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.2.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.2.AdmitOnlyVLANTagged FALSE nocheck

set property InternetGatewayDevice.Layer2Bridging.Marking.3.MarkingEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.3.MarkingBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.3.MarkingInterface 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.3.EthernetPriorityMark 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.3.VLANIDUntag TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.3.VLANIDMark -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.3.VLANIDMarkOverride FALSE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.3.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.3.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.3.FilterInterface 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.3.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.3.AdmitOnlyVLANTagged FALSE nocheck

set property InternetGatewayDevice.Layer2Bridging.Marking.4.MarkingEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.4.MarkingBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.4.MarkingInterface 4 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.4.EthernetPriorityMark 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.4.VLANIDUntag TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.4.VLANIDMark -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.4.VLANIDMarkOverride FALSE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.4.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.4.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.4.FilterInterface 4 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.4.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.4.AdmitOnlyVLANTagged FALSE nocheck


set property InternetGatewayDevice.Layer2Bridging.Marking.5.MarkingEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.5.MarkingBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.5.MarkingInterface 5 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.5.EthernetPriorityMark 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.5.VLANIDUntag TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.5.VLANIDMark -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.5.VLANIDMarkOverride FALSE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.5.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.5.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.5.FilterInterface 5 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.5.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.5.AdmitOnlyVLANTagged FALSE nocheck



set property InternetGatewayDevice.Layer2Bridging.Filter.6.FilterEnable 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.6.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.6.FilterInterface 10 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.6.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.6.AdmitOnlyVLANTagged 0 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.DomainName HomeLAN nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.IPRouters 192.168.1.1 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.DHCPServerEnable 1 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.MaxAddress 192.168.1.254 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.MinAddress 192.168.1.2 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.SubnetMask 255.255.255.0 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.IPInterface.1.Enable 1 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.IPInterface.1.IPInterfaceAddressingType Static nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.IPInterface.1.IPInterfaceIPAddress 192.168.1.1 nocheck
set property InternetGatewayDevice.LANDevice.1.LANHostConfigManagement.IPInterface.1.IPInterfaceSubnetMask 255.255.255.0 nocheck


set property InternetGatewayDevice.Layer2Bridging.Bridge.1.BridgeEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Bridge.1.BridgeStandard 802.1Q nocheck
set property InternetGatewayDevice.Layer2Bridging.Bridge.1.VLANID 201 nocheck
set property InternetGatewayDevice.Layer2Bridging.Bridge.1.BridgeName Internet nocheck

set property InternetGatewayDevice.Layer2Bridging.Marking.6.MarkingEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.6.MarkingBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.6.MarkingInterface 9 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.6.EthernetPriorityMark 3 nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.6.VLANIDUntag FALSE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.6.VLANIDMarkOverride TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Marking.6.VLANIDMark 201 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.7.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.7.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.7.FilterInterface 9 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.7.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.7.AdmitOnlyVLANTagged FALSE nocheck


set property InternetGatewayDevice.Layer2Bridging.Filter.8.FilterEnable 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.8.FilterBridgeReference 1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.8.FilterInterface 11 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.8.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.8.AdmitOnlyVLANTagged 0 nocheck
set property InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANPPPConnection.1.Name HSI_PPP nocheck
set property InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANPPPConnection.1.Enable 1 nocheck
set property InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANPPPConnection.1.ConnectionType IP_Routed nocheck
set property InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANPPPConnection.1.NATEnabled 1 nocheck
set property InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANPPPConnection.1.X_BROADCOM_COM_FirewallEnabled TRUE nocheck

set property "InternetGatewayDevice.Layer2Bridging.Bridge.2.BridgeEnable" "TRUE" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Bridge.2.BridgeName" "VoIP" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Bridge.2.BridgeStandard" "802.1Q" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Bridge.2.VLANID" "15" nocheck

set property InternetGatewayDevice.Layer2Bridging.Filter.9.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.9.FilterBridgeReference 2 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.9.FilterInterface 9 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.9.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.9.AdmitOnlyVLANTagged FALSE nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.EthernetPriorityMark" "3" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.MarkingBridgeReference" "2" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.MarkingEnable" "TRUE" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.MarkingInterface" "9" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.VLANIDMark" "15" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.VLANIDMarkOverride" "1" nocheck
set property "InternetGatewayDevice.Layer2Bridging.Marking.7.VLANIDUntag" "0" nocheck


set property "InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANIPConnection.1.AddressingType" "Static" nocheck
set property "InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANIPConnection.1.ConnectionType" "IP_Routed" nocheck
set property "InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANIPConnection.1.Enable" "1" nocheck
set property "InternetGatewayDevice.WANDevice.1.WANConnectionDevice.1.WANIPConnection.1.Name" "VoIP" nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.10.FilterEnable TRUE nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.10.FilterBridgeReference 2 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.10.FilterInterface 12 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.10.VLANIDFilter -1 nocheck
set property InternetGatewayDevice.Layer2Bridging.Filter.10.AdmitOnlyVLANTagged FALSE nocheck

set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.DigitMap" "x.T" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.DigitMapEnable" "1" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line.1.PhyReferenceList" "1" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.Line.2.PhyReferenceList" "2" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.OutboundProxy" "192.168.133.55" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.OutboundProxyPort" "5060" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.ProxyServer" "192.168.133.55" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.RegisterExpires" "610" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.RegistrarServer" "192.168.133.55" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.RegistrarServerPort" "5060" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.RegistrationPeriod" "600" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.UserAgentDomain" "192.168.133.55" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.VoiceProfile.1.SIP.UserAgentPort" "5060" nocheck
set property "InternetGatewayDevice.Services.VoiceService.1.X_WANReferenceList" "12" nocheck
