Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Operating Case Temperature Range |
Tc |
0 |
- |
+70 |
С |
Power Supply Voltage @ 3.3V |
Vcc3 |
3,13 |
3,3 |
3,47 |
V |
Module total power |
P |
- |
- |
2,5 |
W |
Transmitter |
|||||
Input differential impedance |
Rin |
- |
100 |
- |
Ω |
Differential data input swing |
Vin,pp |
120 |
- |
820 |
mV |
Transmit Disable Voltage |
VD |
2,0 |
- |
Vcc |
V |
Transmit Enable Voltage |
VEN |
GND |
- |
GND+0.8 |
V |
Transmit Disable Assert Time |
- |
- |
- |
10 |
us |
Receiver |
|||||
Differential data output swing |
Vout,pp |
500 |
- |
850 |
mV |
Data output rise time |
tr |
- |
- |
38 |
ps |
Data output fall time |
tf |
- |
- |
38 |
ps |
LOS Fault |
VLOS fault |
Vcc – 0.5 |
- |
VccHOST |
V |
LOS Normal |
VLOS norm |
GND |
- |
GND+0.5 |
V |
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
Transmitter |
|||||
Optical output Power |
P |
-6,5 |
- |
+0,5 |
dBm |
Optical Wavelength |
λ |
1260 |
- |
1355 |
nm |
Optical Extinction Ratio |
ER |
6 |
- |
- |
dB |
Side Mode Suppression Ratio |
SMSR |
30 |
- |
- |
dB |
Average Launch power of OFF transmitter |
POFF |
-30 |
- |
- |
dBm |
Transmitter and Dispersion Penalty |
TDP |
- |
- |
3,2 |
dB |
Receiver |
|||||
Receiver Sensitivity |
RSENS |
- |
-16 |
-14,5 |
dBm |
Receiver Sensitivity in OMA |
RSENS |
- |
- |
-12,6 |
dBm |
stressed receiver sensitivity in OMA |
RSENS |
- |
- |
-10,3 |
dBm |
Maximum Input Power |
PMAX |
+0,5 |
- |
- |
dBm |
Optical Center Wavelength |
λC |
1260 |
- |
1600 |
nm |
LOS De-Assert |
LOSD |
- |
- |
-15 |
dBm |
LOS Assert |
LOSA |
-25 |
- |
- |
dBm |
LOS Hysteresis |
- |
1 |
- |
4 |
dB |

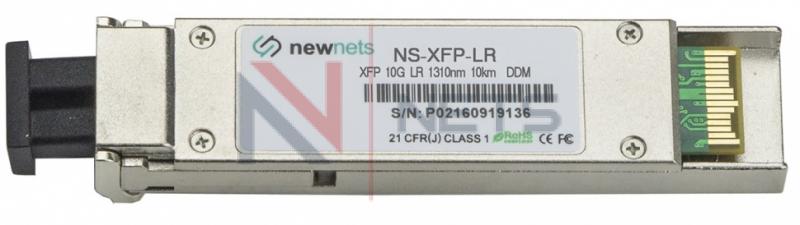

Оптический трансивер NS-XFP-10G-LR10D, дальность до 10km, длина волны 1310nm, LC, DDM
